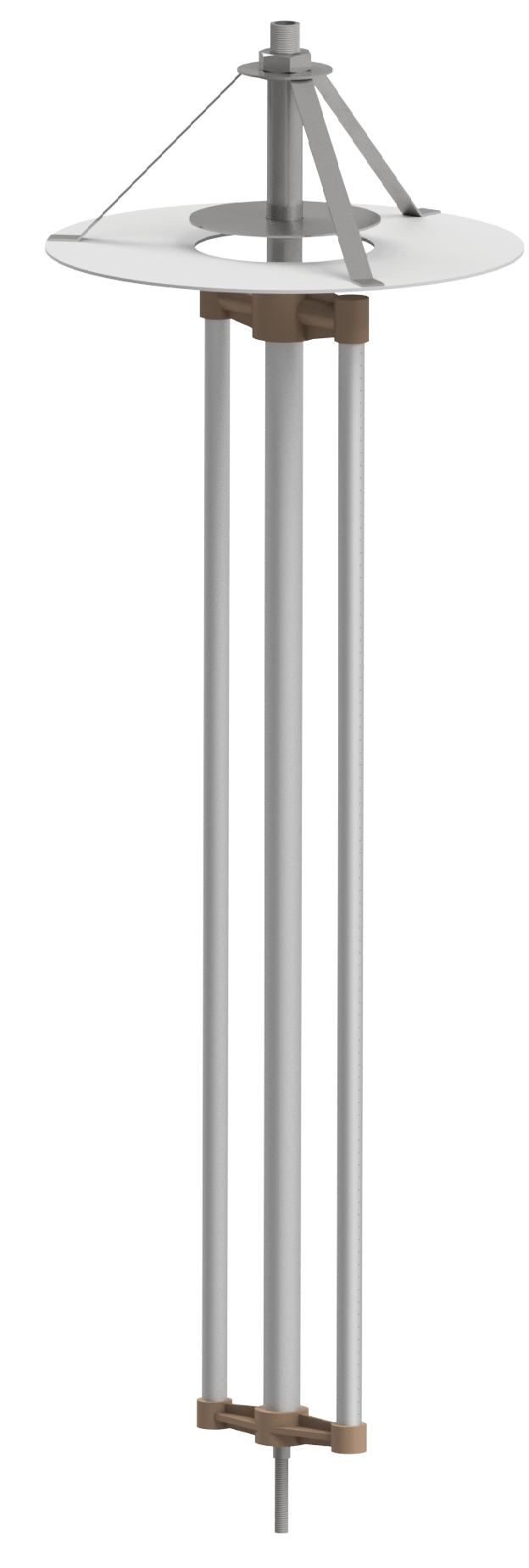

Rotating Wing

Rotating Wing are ideal for cleaning cartridge filter. The automatic, incrementally rotating filter cleaning system uniformly cleans 100 percent of the cartridges’ surfaces.

Features

● Extremely efficient.
● Uniform cleaning.
● Low cleaning pressure.
● Low noise level.
● Minimal consumption of compressed air.
● Careful cleaning of cartridges.
● Suitable for high differential pressure load.
● Worldwide distribution.
● Versions for both the untreated and cleaned
   gas sides.

Model and Air Consumption

MODELLENGTH (MM) AIR TANK CAPACITY (L)AIR CONSUMPTION PER IMPULSE
RTW-25-0330010Approx. 30
RTW-25-0660016Approx. 50
RTW-25-10100032Approx. 80
RTW-25-12120032Approx. 90

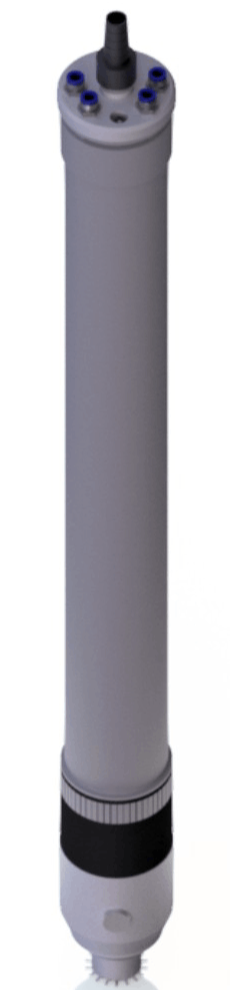

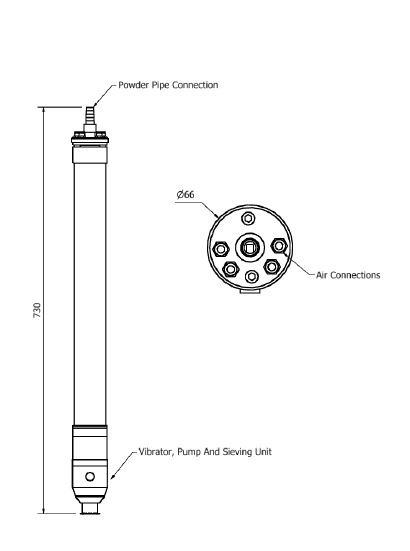

DeepSiever

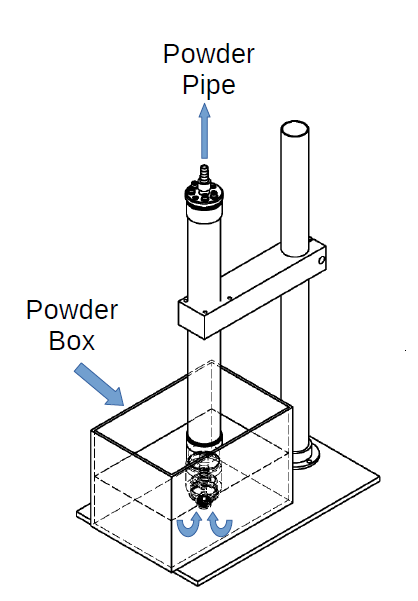

DeepSiever is powder pump, siever and fluidizer eliminating the need of hopper to fluidize powder. It is all in one powder feeder system. It is directly inserted into the powder box and can be used.

Features

● Eliminate use of fluidize hopper.
● Direct Powder Feed.
● Uniform powder supply.
● Low maintenance pressure.
● Low noise level.
● Minimal consumption of compressed air compared to hopper system.

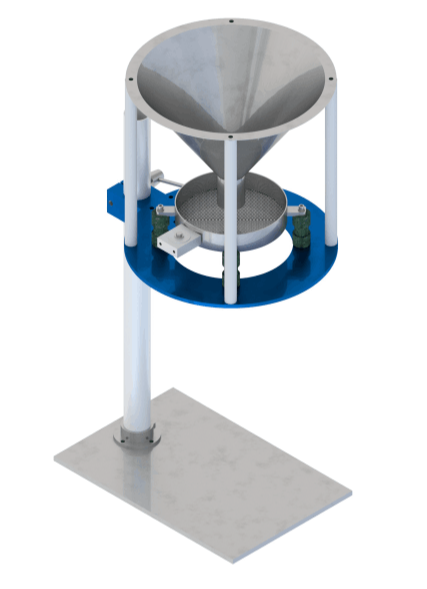

Pneumatic Powder Siever

Pneumatic Sieving machine is used to sieve used powder. This is achieved by using high frequency vibrator which increases the sieve rate up to 200 kg/hr.

Features

● Lightweight and mobile.
● Rigid and strong body.
● Adjustable height to suit your needs.
● Easy clean and low maintenance.
● High sieving rate up to 200 kg/hr.
● Hold up to 8 kg of powder at time.

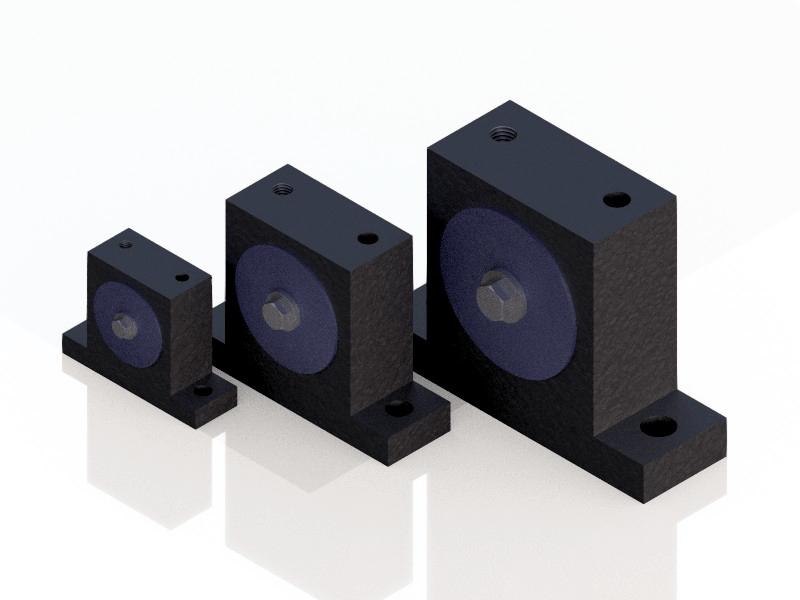

Pneumatic Vibrator

Pneumatic Turbine Vibrators are ideal for applications where high frequency, low maintenance and low amplitude are needed. MMW’s vibrator are very efficient due use of low friction bearing
consume less air than  competition.

Features

● Low noise output.
● Low air consumption*.
● Adjustable force and frequency.
● Matched & shielded ball bearings prelubricated     with long life grease.
● Light weight aluminium body, powder coated to
    increase life span.
